Chargery released Balance charger and discharger which is applied to 1 to 10S lipo, Lion, LiFe cells, NIMH&NICD, and Pb battery (VRLA, lead battery).
Chargery improved the voltage accuracy to under 5mV even up to 10S lipo cells, that help us to protect and manage each cell voltage during charge and discharge.
Unique balance algorithm realize up to 1.3A current draw from each cell
Creative circuit topology realize response quickly to any instantaneously changes on input and output voltage.

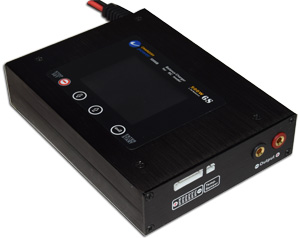

500W charger is released
Model: 5006B, 5008B, 50010B V1.07
10-28V DC input
0.1-20A charge, 500W max.
Up to 10A discharge 35W max.
1.3A balance current per cell
5mV cell voltage accuracy
Update firmware by USB port from PC
Size：154*114*33 (L×W×H, mm) or 6.1×4.48×1.3 (L×W×H, inch)
